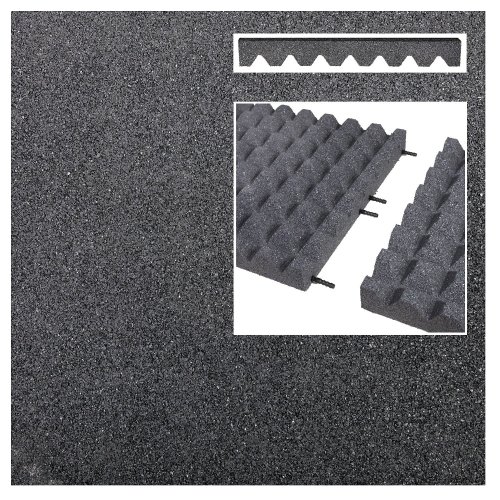

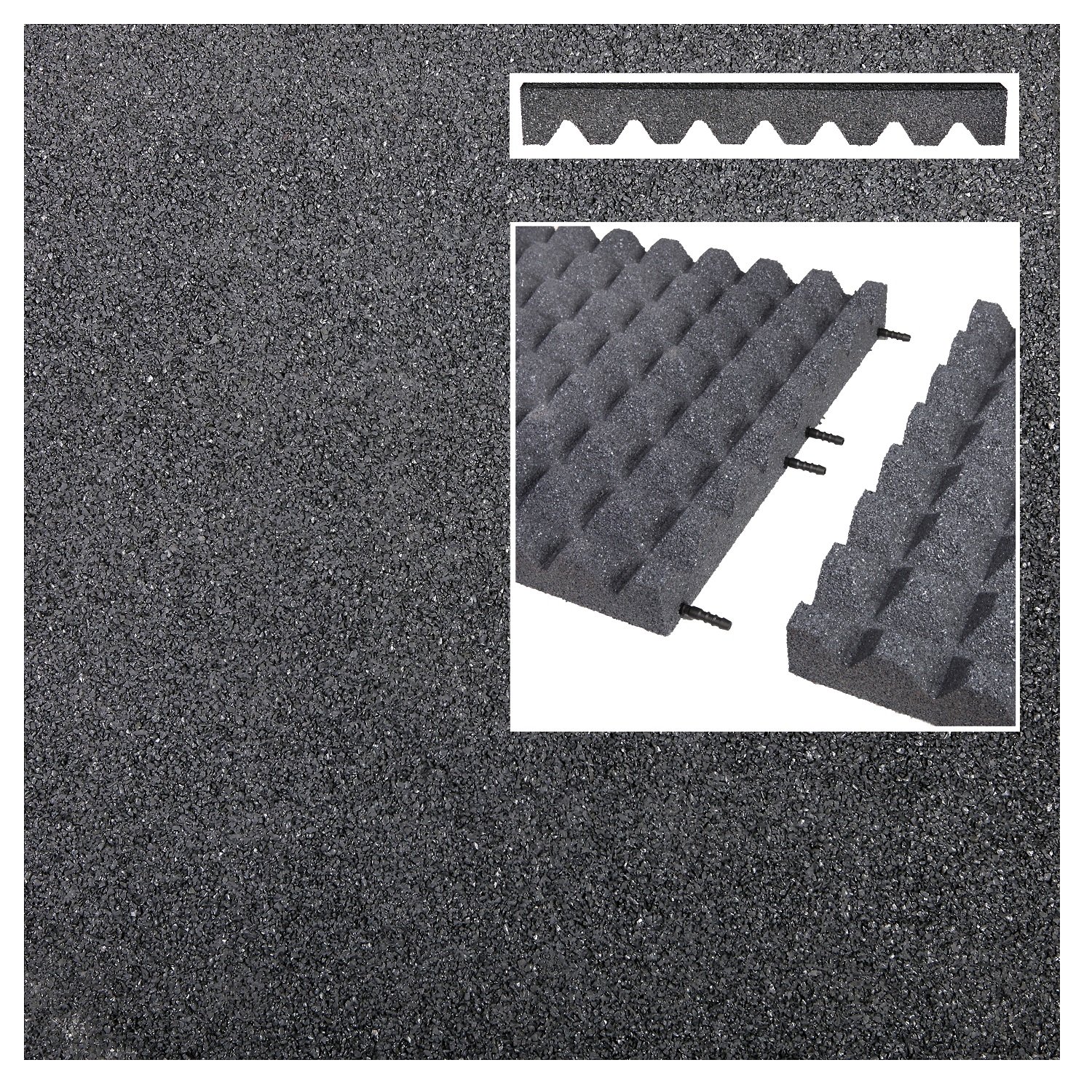

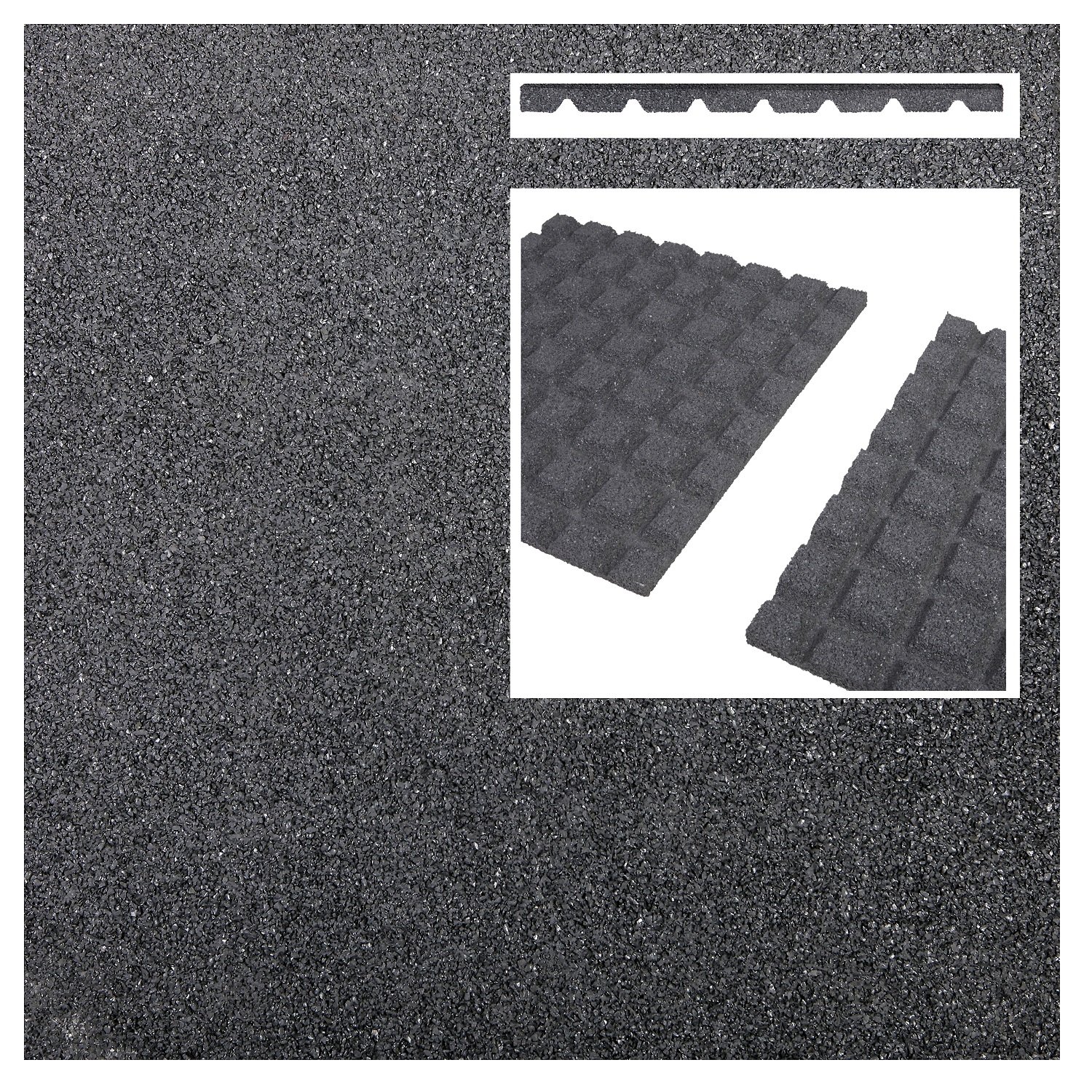

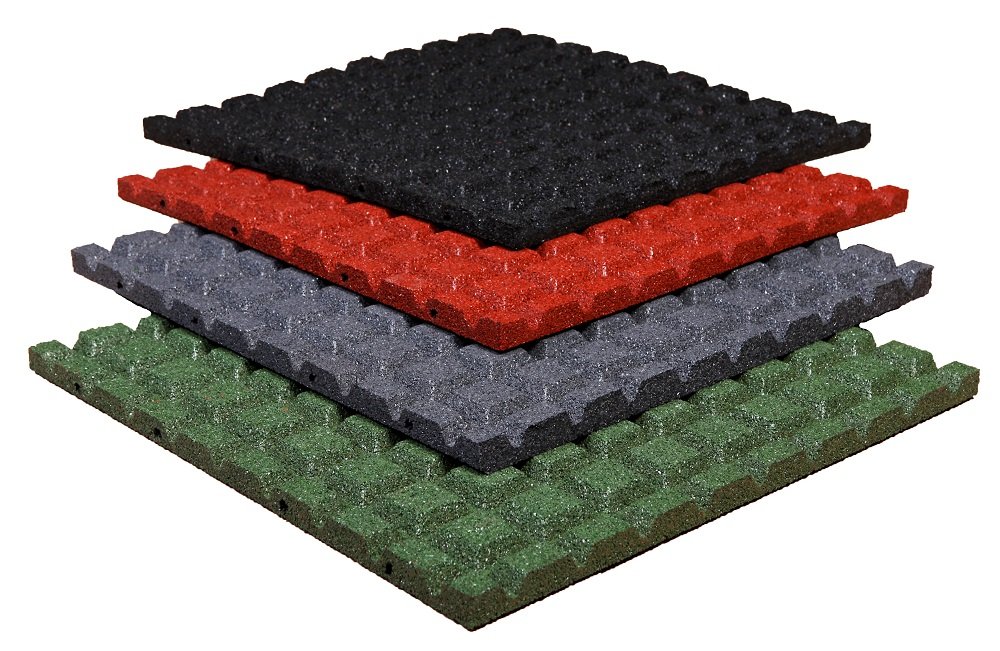

Tile with raster
The tile has a so-called raster on the underside to provide surface resilience, rapid water drainage and ensures a more elastic feeling when walking and rebounding. In the case of sports games, children running, presence of game elements and other activities, the cover absorbs the impact on the surface and silences the acoustic noise in lower floors.
The tile is made from SBR rubber or EPDM rubber.
Basic information
Material: SBR rubber or more expensive and more stable EPDM rubber (black RE-EPDM layer + 5 mm top layer of dyed primary EPDM)
Dimensions: 500 x 500 mm
Density: 750 kg/m3
Colour
Produced in several variants and heights according the requirements of critical height of the fall (HIC)
| Name | Raster | Thickness (mm) | Weight (kg) | HIC (cm) |
|---|---|---|---|---|
| Tile with raster | 15 | 30 | 4,8 | 103 |
| 28 | 45 | 6,4 | 150 | |
| 65 | 10,4 | 190 |
The joints are using a plastic pin.
The tile can be installed on a gravel surface (several fractions of vibrated aggregate which drains the water well). It is not necessary to have a nocrete or asphalt surface.
